Customize message item display

The Chat UI SDK uses message display templates to control how messages appear on the channel screen. You can modify the display template for specific message types to customize their appearance.

• The SDK provides default display templates for built-in message types that appear on the channel screen (see Message type overview). You can create custom templates to replace the defaults.
• Custom message types created by your app (see Custom message types) have no default display template. If you need to display custom message types on the channel screen, you must create a corresponding message display template and provide it to the SDK.

tip

To display custom message types on the channel screen, you must create a corresponding message display template. Otherwise, the SDK cannot render that message type.

Modify message UI through style resources

You can adjust the background images, text colors, and font sizes of built-in messages by replacing the Chat UI style resources. This approach works well for lightweight customization of the channel screen.

Replace message background images

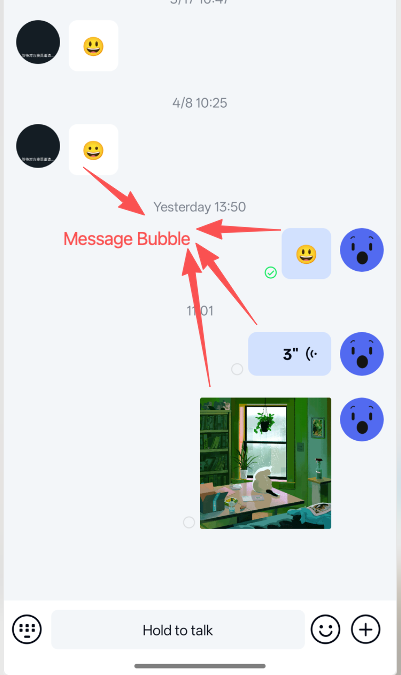

Each message on the Chat UI channel screen has a bubble background. Blue bubbles indicate sent messages, white bubbles indicate received messages.

The Chat UI references two 9-patch files in the base message item provider class BaseMessageItemProvider. You can create files with the same names in your application's res/drawable-xhdpi/ directory to replace the default .9.png image resources and change the message bubble appearance.

Resource path and name	Description
res/drawable-xhdpi/nc_ic_bubble_right.9.png	Right bubble for sent messages
res/drawable-xhdpi/nc_ic_bubble_left.9.png	Left bubble for received messages

Modify font color or size for built-in text messages

You can customize the font color or size for built-in text messages in the Chat UI.

Copy the nc_translate_text_message_item.xml file from the Chat UI source code to your application's res/layout directory, then modify the font size and color in that layout file.

tip

To override the base text message layout directly, copy nc_text_message_item.xml instead.

Replace built-in message display templates

The Chat UI provides a message display template for each message type. All message display templates inherit from BaseMessageItemProvider.

If you need to change the display appearance of SDK built-in messages and require extensive customization, you can extend BaseMessageItemProvider to create a new message display template, then provide that custom template to the SDK to replace the default.

Built-in default message display templates

Message type	Template class name
Text message TextMessage	TextMessageItemProvider
Image message ImageMessage	ImageMessageItemProvider
Voice message HDVoiceMessage	HQVoiceMessageItemProvider
File message FileMessage	FileMessageItemProvider
Location message LocationMessage	Provided by the external locationKit plugin
Real-time location sharing RealTimeLocationStartMessage	Provided by the external locationKit plugin
Short video message ShortVideoMessage	ShortVideoMessageItemProvider
GIF message GIFMessage	GIFMessageItemProvider
Combined forward message CombineMessage	CombineMessageItemProvider
Information notification message InformationNotificationMessage	InformationNotificationMessageItemProvider
Group notification message	GroupNotificationMessageItemProvider

Step 1: Create a custom template

This example shows how to customize the display template for text messages:

1. Create a custom text message display layout file my_text_message.xml.

   xml

   <?xml version="1.0" encoding="utf-8"?>
   <TextView xmlns:android="http://schemas.android.com/apk/res/android"
       android:id="@+id/my_text"
       style="@style/TextStyle.Alignment"
       android:layout_width="wrap_content"
       android:layout_height="wrap_content"
       android:padding="12dp"
       android:textColor="@android:color/holo_green_dark"
       android:textColorLink="@android:color/holo_red_dark"
       android:fontFamily="sans-serif"
       android:textSize="14sp"
       android:maxWidth="223dp" />

2. Create a custom template MyTextMessageProvider that extends BaseMessageItemProvider, specify the message type in <> as TextMessage, and implement all abstract methods as prompted by Android Studio.

   Java

   public class MyTextMessageProvider extends BaseMessageItemProvider<TextMessage> {
         public MyTextMessageProvider() {
           mConfig.centerInHorizontal = true; // Configure display properties to center this message.
       }
       /**
        * Generate ViewHolder from custom layout file
        */
       @Override
       protected ViewHolder onCreateMessageContentViewHolder(ViewGroup viewGroup, int i) {
           View textView = LayoutInflater.from(viewGroup.getContext()).inflate(R.layout.my_text_message, viewGroup, false);
           return new ViewHolder(viewGroup.getContext(), textView);
       }

       /**
        * Set values for controls in the layout file based on message content.
        */
       @Override
       protected void bindMessageContentViewHolder(ViewHolder viewHolder, ViewHolder viewHolder1, TextMessage textMessage, UiMessage uiMessage, int i, List<UiMessage> list, IViewProviderListener<UiMessage> iViewProviderListener) {
           TextView textView = viewHolder.getView(R.id.my_text);
           textView.setText(textMessage.getContent());
       }

       /**
        * This method is called when controls in the custom layout are clicked. Implement click logic here.
        * This example ignores click handling.
        */
       @Override
       protected boolean onItemClick(ViewHolder viewHolder, TextMessage textMessage, UiMessage uiMessage, int i, List<UiMessage> list, IViewProviderListener<UiMessage> iViewProviderListener) {
           return false;
       }

       /**
        * Return whether the message type should be displayed by this template.
        * This example indicates that this template only handles text message types.
        */
       @Override
       protected boolean isMessageViewType(MessageContent messageContent) {
           return messageContent instanceof TextMessage;
       }

       /**
        * When this message type is the last message in a channel, this method returns the description content to display in the channel list.
        * This example returns the actual content of the text message.
        */
       @Override
       public Spannable getSummarySpannable(Context context, TextMessage textMessage) {
           return new SpannableString(AndroidEmoji.ensure(textMessage.getContent()));
       }
   }

Step 2: Replace the default template

After creating a custom template, call the following method to replace the SDK's default message display template. After replacement, the SDK automatically uses the custom template for that message type when rendering messages.

• Code example

  This example uses the custom template MyTextMessageProvider.

  Java

  NCChatUIConfig.channelConfig().replaceMessageProvider(TextMessageItemProvider.class, new MyTextMessageProvider())

• Replacement method:

  Java

  NCChatUIConfig.channelConfig().replaceMessageProvider(Class oldProviderClass, IMessageProvider provider)

  Parameter	Description
  oldProviderClass	Class name of the SDK default message display template. See Built-in default message display templates.
  provider	Custom message display template object.

Step 3: Configure template properties

The Chat UI uses the message display configuration class MessageItemProviderConfig in the base message item provider class BaseMessageItemProvider to control some style properties of message templates. In the constructor of a BaseMessageItemProvider subclass template, you can directly access the message display configuration object mConfig and modify the following property values:

Message display configuration property	Description	Default value
showPortrait	Whether to show avatar.	true
centerInHorizontal	Whether to center message content horizontally.	false
showWarning	Whether to show warning for failed sends.	true
showProgress	Whether to show send progress.	true
showSummaryWithName	Whether to show sender name in channel content.	true
showReadState	Whether to show read receipt status icon next to messages in direct channels.	false
showContentBubble	Whether to show message bubble.	true

For example, in the following code, we modify the default property values to center messages using this template and enable read receipt status icons in direct channels:

Java

public MyCustomMessageProvider() {
  mConfig.showReadState = true; // Whether to show read receipt status icon next to messages in direct channels. Default is false.
  mConfig.centerInHorizontal = true; // Configure display properties to center this message.
}
