Make your first call

This tutorial shows how to build a minimal calling integration in an Android app by using the public APIs currently exposed from ai.nexconn.call.api.

Prerequisites​

  • Android minSdkVersion: 21
  • Android compileSdk / targetSdk: 35
  • Java 11 build configuration
  • A working Chat SDK initialization and connection flow

Step 1: Add dependencies and project configuration​

1. Add SDK dependencies​

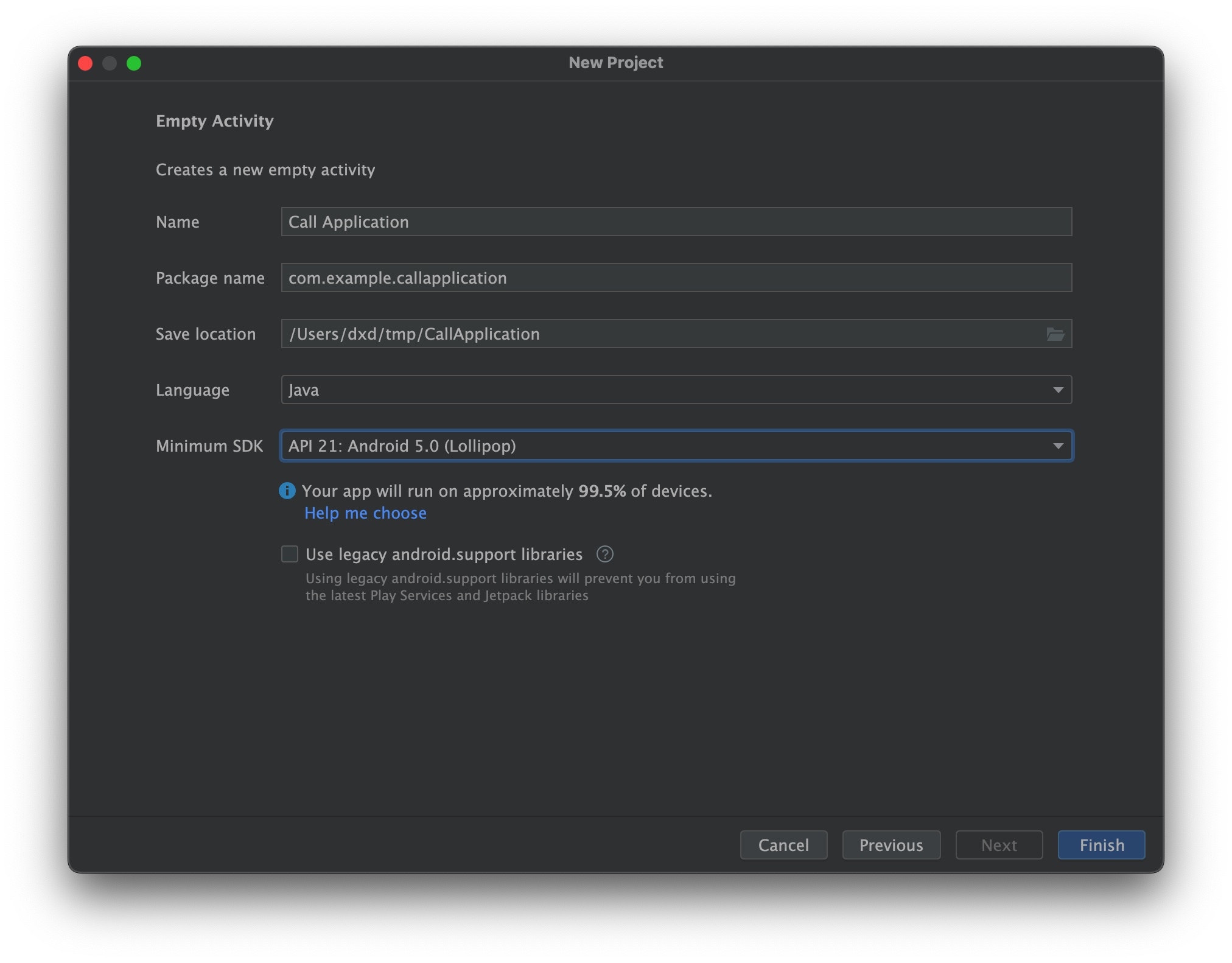

  1. Open your project in Android Studio and switch to the Project view.

  2. In the root build.gradle, declare the Nexconn Maven repository:

    Use the setup that matches your Gradle plugin version:

    Open the root build.gradle file and add:

    Groovy
    allprojects {
        repositories {
            ...

            mavenCentral()
        }
    }

  3. In your app-level build.gradle, add the Nexconn SDK as a dependency. Replace x.y.z with the latest version from the Maven repository.

    Groovy
    dependencies {
        ...
        implementation 'ai.nexconn.chat:call:<version>'
        implementation 'ai.nexconn.chat:chat:<version>'
        // Optional push SDKs
        implementation 'ai.nexconn.chat:push-fcm:<version>'
        implementation 'ai.nexconn.chat:push-hms:<version>'
    }

Use a Nexconn Chat SDK version that matches your Call SDK package, and complete Chat initialization and connection first.

2. Configure permissions​

  1. Declare all required permissions in AndroidManifest.xml.

    xml
    <!-- Allows the app to access network connections -->
    <uses-permission android:name="android.permission.INTERNET" />
    <!-- Allows the app to query network connection state -->
    <uses-permission android:name="android.permission.ACCESS_NETWORK_STATE" />
    <uses-permission android:name="android.permission.CHANGE_NETWORK_STATE" />
    <!-- Allows the app to query Wi-Fi and hotspot state -->
    <uses-permission android:name="android.permission.ACCESS_WIFI_STATE" />
    <!-- Allows the app to use the camera -->
    <uses-permission android:name="android.permission.CAMERA" />
    <!-- Allows the app to record audio -->
    <uses-permission android:name="android.permission.RECORD_AUDIO" />
    <!-- Allows the app to modify audio settings -->
    <uses-permission android:name="android.permission.MODIFY_AUDIO_SETTINGS" />
    <!-- Allows the app to read phone state -->
    <uses-permission android:name="android.permission.READ_PHONE_STATE" />

  2. If your app supports Android 6.0 (API level 23) or later, request CAMERA and RECORD_AUDIO at runtime when the user starts or accepts a call. For details, see the Android documentation for runtime permissions and the request permission workflow.

Step 2: Install and initialize the Call SDK​

Use this initialization order:

  1. Call NCCallEngine.install() before Chat SDK initialization.
  2. Initialize and connect the Chat SDK.
  3. Initialize the Call SDK, call NCCallEngine.initialize(...).
Java
// 1. Call once during app startup, before NCEngine initialization
NCCallEngine.install();

// 2. Initialize NCEngine
InitParams initParams = new InitParams(context, "your-app-key");
initParams.setLogLevel(LogLevel.DEBUG);
initParams.setAreaCode(AreaCode.SG);
initParams.setEnablePush(true);
NCEngine.initialize(initParams);

// 3. Connect the Chat SDK
ConnectParams connectParams = new ConnectParams("user-token");
NCEngine.connect(connectParams, new ConnectHandler() {
    @Override
    public void onResult(String userId, NCError error) {
        ... ...
    }
});

// 4. Initialize the Call SDK.
NCCallInitParams callInitParams = new NCCallInitParams(context);
callInitParams.pubLowResolutionStream(true);

NCCallEngine.initialize(callInitParams);

Make sure the Chat SDK is already connected before users place or receive calls; otherwise later call APIs can return NCCallCode.CHAT_DISCONNECTED.

Step 3: Register handlers​

Register the call event handler before Chat connects so that you can receive restored call events or offline incoming calls as early as possible.

Java
NCCallEngine engine = NCCallEngine.getInstance();

engine.setCallEventHandler(new NCCallEventHandler() {
    @Override
    public void onCallReceived(NCCallReceivedEvent event) {
        // Incoming call received
    }

    @Override
    public void onCallConnected(NCCallConnectedEvent event) {
        // Call connected
    }

    @Override
    public void onCallEnded(NCCallEndedEvent event) {
        // Call ended
    }

    ... ...

});

engine.setAPIResultHandler(new NCCallAPIResultHandler() {
    @Override
    public void onStartCall(NCCallStartCallResult result) {
    }

    @Override
    public void onAcceptCall(NCCallAcceptCallResult result) {
    }

    @Override
    public void onEndCall(NCCallEndCallResult result) {
    }

    ... ...

});

Step 4: Prepare local and remote video views​

Before you start a video call, create the local and remote render views:

Java
NCCallLocalVideoView localView = new NCCallLocalVideoSurfaceView(context);
localView.setRenderMode(NCCallRenderMode.FILL);

NCCallRemoteVideoView remoteView =
        new NCCallRemoteVideoSurfaceView(context, remoteUserId, false);
remoteView.setRenderMode(NCCallRenderMode.FILL);

//TODO: add the created localView and remoteView to your own UI layout

NCCallEngine engine = NCCallEngine.getInstance();
engine.setLocalVideoView(localView);
engine.setRemoteVideoView(Collections.singletonList(remoteView));

Step 5: Start a call​

Java
NCCallStartCallParams params = new NCCallStartCallParams(
        Collections.singletonList(remoteUserId),
        NCCallType.SINGLE,
        NCCallMediaType.AUDIO_VIDEO
);
params.setPushConfig(pushConfigs); // optional: android&iOS push config
params.setExtra(extra); //optional: extra content sent to receivers

NCCallEngine engine = NCCallEngine.getInstance();
engine.startCall(params);

For an audio-only call, change mediaType to NCCallMediaType.AUDIO.

Step 6: Accept or end the call​

On the callee side, call the following APIs after onCallReceived(...):

Java
NCCallReceivedEvent event = ...; // from onCallReceived callback
String callId = event.getCallSession().getCallId();

// Accept the call
NCCallAcceptCallParams acceptParams = new NCCallAcceptCallParams(callId);
NCCallEngine.getInstance().acceptCall(acceptParams);

// End or reject the call
NCCallEndCallParams endParams = new NCCallEndCallParams(callId);
NCCallEngine.getInstance().endCall(endParams);

Step 7: Control devices during the call​

After the call is connected, control audio and video devices as needed:

Java
NCCallEngine engine = NCCallEngine.getInstance();

engine.enableCamera(true);
engine.enableMicrophone(true);
engine.enableSpeaker(true);
engine.switchCamera();

Next steps​
